WP Series Worm Gearboxes

Cast-iron right-angle worm gear reducers for robust industrial drive systems

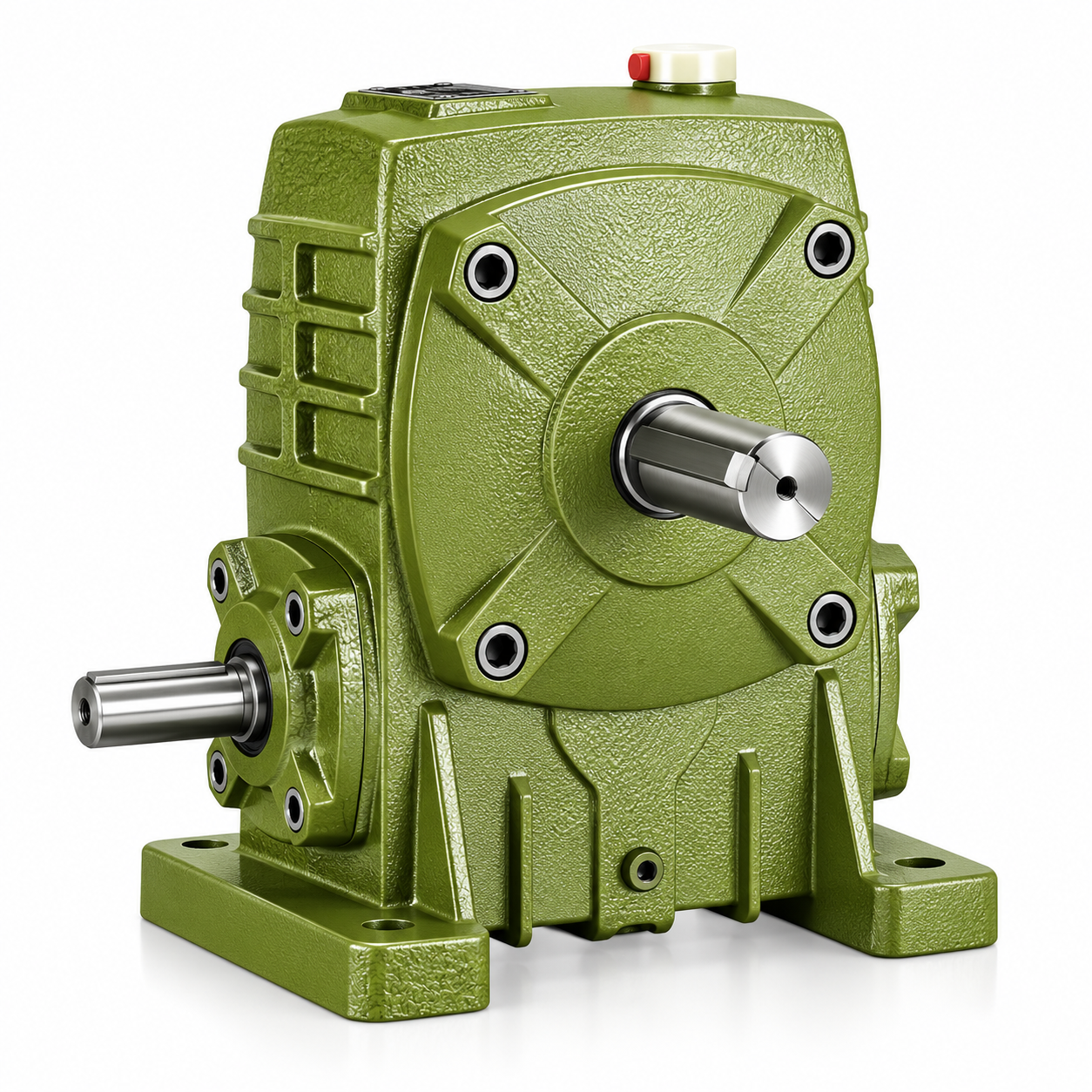

WP Series cast iron worm gearbox with right-angle shaft arrangement

WP Series Worm Gearboxes

Frame Sizes:40–250
Center Distance:40–250 mm
Gear Ratio:10:1–60:1
Gear Arrangement:Worm gears, 1 stage
Shaft Arrangement:Right angle
Housing:Cast iron
SEND EMAILCHAT ONLINE

Overview

WP Series worm gearboxes are cast-iron, right-angle speed reducers for industrial applications that need a robust shaft-mounted or flange-input drive arrangement. Select the final configuration by ratio, mounting orientation, shaft connection and required output torque.

Components

1. Housing: Cast iron.

2. Gearset: One-stage worm gear arrangement.

3. Input configurations: Solid input shaft or IEC B5 motor-flange input.

4. Output configurations: Solid output shaft or hollow output shaft.

Models & Variants

SeriesConfiguration
WPALower input shaft
WPSUpper input shaft
WPDALower input flange
WPDSUpper input flange
WPOVertical upward output shaft
WPXVertical downward output shaft
WPDOVertical upward output shaft with input flange
WPDXVertical downward output shaft with input flange

Available Frame Sizes and Ratios

Frame sizeCenter distanceStandard ratio options
WPA4040 mm10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1
WPA5050 mm
WPA6060 mm
WPA7070 mm
WPA8080 mm
WPA100100 mm
WPA120120 mm
WPA135135 mm
WPA147147 mm
WPA155155 mm
WPA175175 mm
WPA200200 mm
WPA250250 mm

Features

  • Different input and output shaft arrangements for horizontal or vertical installations.
  • Compact right-angle transmission layout.
  • Direct-drive or indirect-drive arrangements can be selected by the application.
  • Solid-shaft and hollow-shaft output options.

Selection Notes

Before ordering, confirm the motor power and speed, required ratio or output speed, required output torque, mounting position, input flange or shaft dimensions, and output connection. Frame size and ratio alone do not confirm suitability; thermal duty and service conditions must also be checked.

For compact aluminum alternatives, see our NMRV worm gear reducers. For a motor-ready solution, see worm gear motors. Conveyor projects can also start with our conveyor gearbox selection guide.
