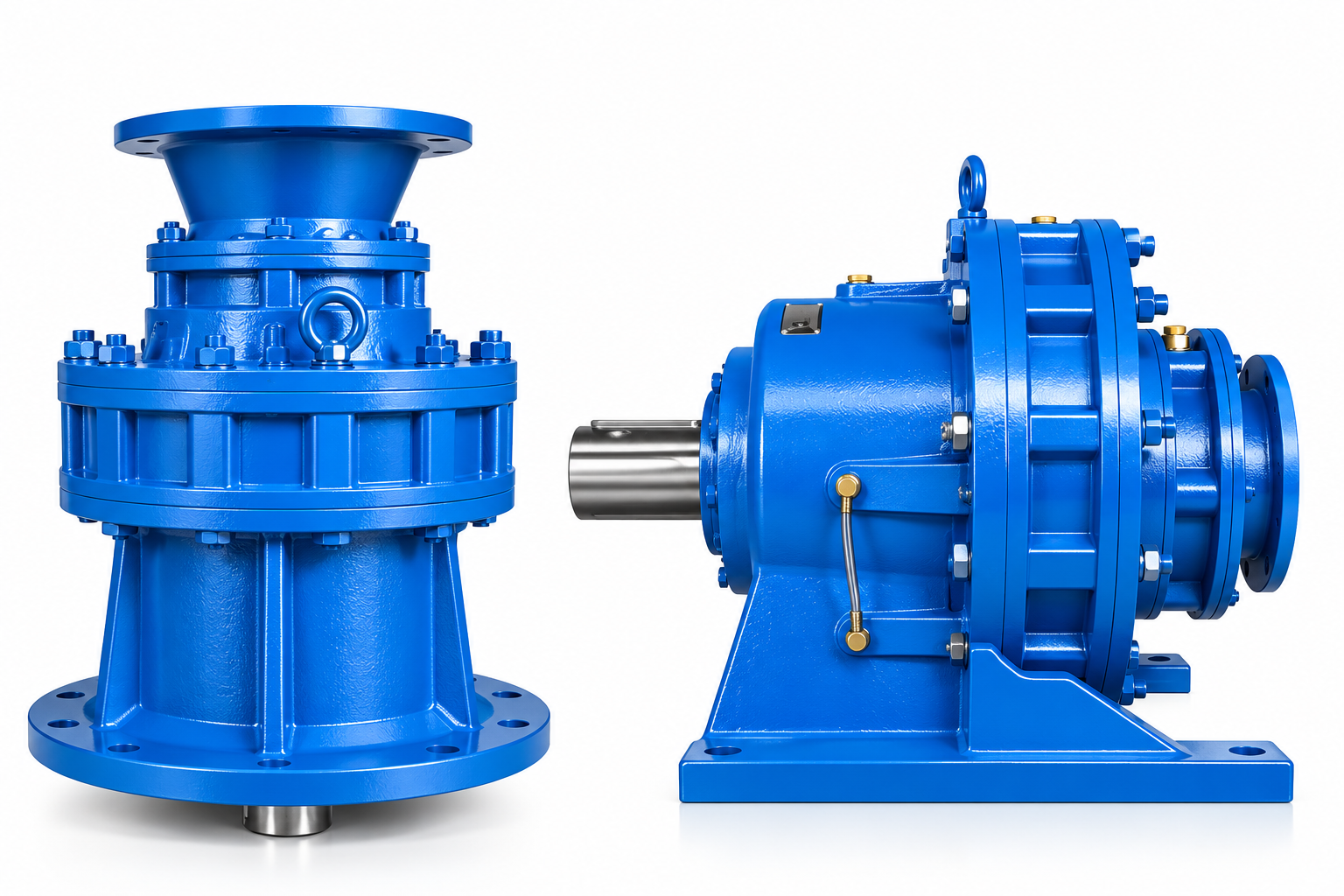

X/B/JXJ Series Cycloidal Reducers
Overview
X, B and JXJ series cycloidal reducers use a cycloidal wheel and pin-wheel transmission. They provide compact coaxial or inline drive arrangements for conveyors, mixers, handling equipment and other machinery requiring a large reduction ratio.
Components
1. Housing: Cast iron.
2. Gearset: Cycloid wheel and pin wheel.
3. Input configurations: Solid input shaft, IEC motor flange, AC motor, brake motor, explosion-proof motor, variable-speed motor or hydraulic-motor configuration, subject to selection.
4. Output configurations: Keyed solid output shaft.
Features
- One-stage ratios from 9:1 to 87:1; two-stage ratios from 121:1 to 1849:1.
- Compact transmission layout with stable, low-noise operation.
- Average efficiency stated above 90% for the specified configuration and duty.
- Foot-mounted and flange-mounted arrangements.
One-Stage Parameters
| Model | Power (kW) | Ratio | Max. torque (N·m) | Output shaft | Input shaft |
|---|---|---|---|---|---|
| X2 (B0/B12/JXJ0) | 0.37–1.5 | 9–87 | 150 | Ø25 (Ø30) | Ø15 |
| X3 (B1/B15/JXJ1) | 0.55–2.2 | 9–87 | 250 | Ø35 | Ø18 |
| X4 (B2/B18/JXJ2) | 0.75–4.0 | 9–87 | 500 | Ø45 | Ø22 |
| X5 (B3/B22/JXJ3) | 1.5–7.5 | 9–87 | 1,000 | Ø55 | Ø30 |
| X6 (B4/B27/JXJ4) | 2.2–11 | 9–87 | 2,000 | Ø65 (Ø70) | Ø35 |
| X7 | 3.0–11 | 9–87 | 2,700 | Ø80 | Ø40 |
| X8 (B5/B33/JXJ5) | 5.5–18.5 | 9–87 | 4,500 | Ø90 | Ø45 |
| X9 (B6/B39/JXJ6) | 7.5–30 | 9–87 | 7,100 | Ø100 | Ø50 |
| X10 (B7/B45/JXJ7) | 15–45 | 9–87 | 12,000 | Ø110 | Ø55 |
| X11 (B8/B55/JXJ8) | 18.5–55 | 9–87 | 20,000 | Ø130 | Ø70 |
Two-Stage Selection Range
X32, X42, X53, X63, X64, X74, X84, X85, X95, X106 and X117 configurations cover 0.25–15 kW with ratios from 121:1 to 1849:1. Final torque and shaft dimensions must be confirmed for the selected combination.
Installation, Lubrication and Cooling
Foot-mounted and flange-mounted configurations are available. Smaller models may use grease lubrication; larger selected models use oil-bath and splash lubrication or oil-pump circulation lubrication. Cooling is natural. Confirm the actual lubrication method, mounting position, motor power, service factor and thermal duty before ordering.
